Civility in critiquing the ideas of others is no vice. Rudeness in defending your own ideas is no virtue.


Fri 6 Jan 2006, 10:44 AM
These are done with our Midas Rich Text LSX Version 3.60, which was just released.  I wanted a simple demo that shows some of the advantages of the Midas Rich Text HTML rendering engine over the standard Domino engine.  CoexEdit uses the same basic rendering engine, so is virtually identical to Midas.  There are plenty of advantages, but these screen shots capture at least a few.  I have used compressed versions of the big picture, then show some details in full size.  Click on any compress image to get the full size version.

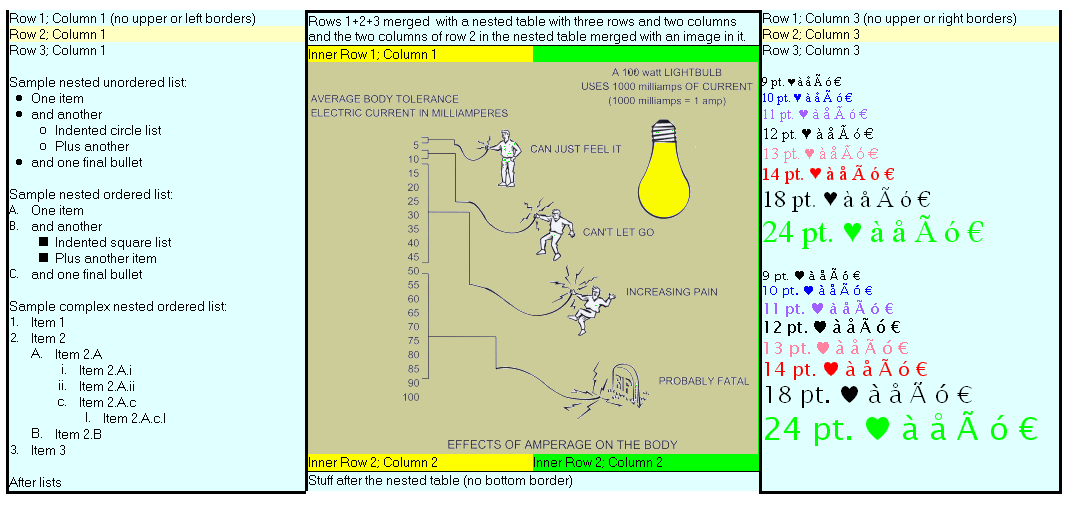

Notes version (50% size)

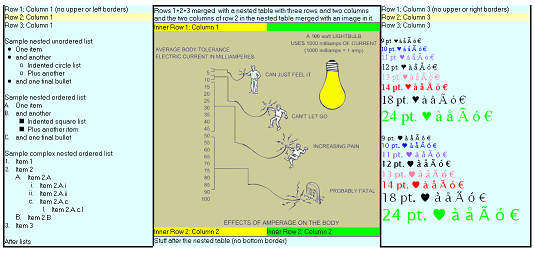

Notes client rendering

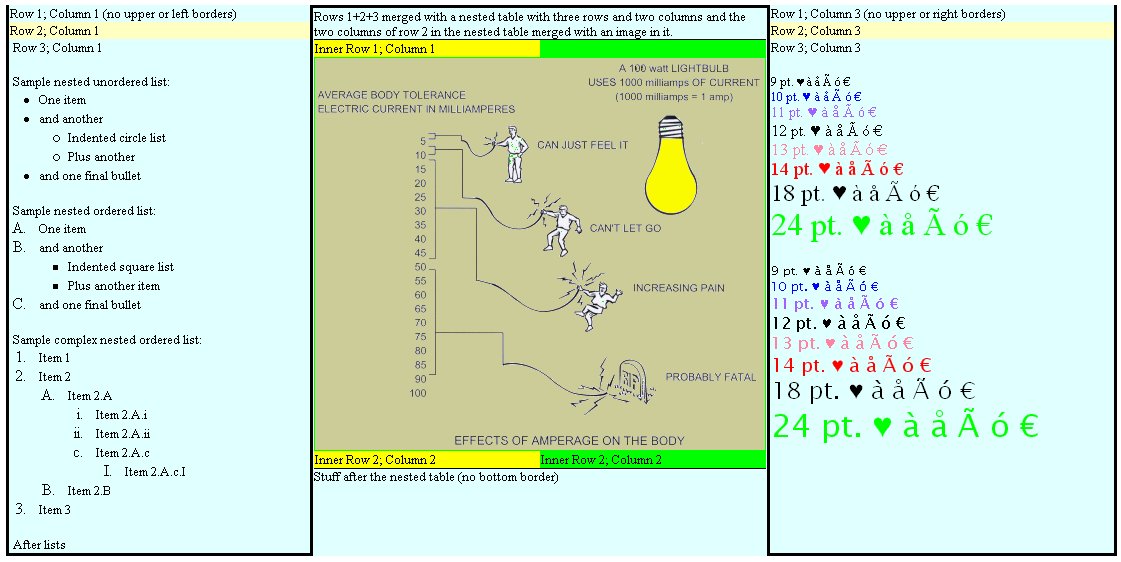

Rendered with Midas Rich Text LSX 3.60 (50% size)

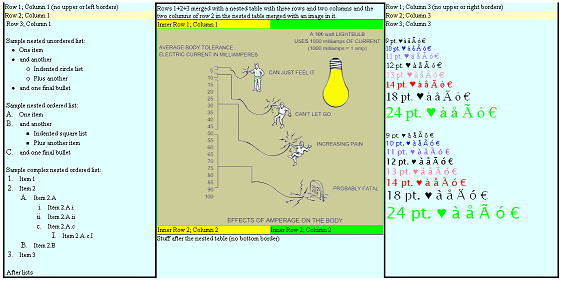

Midas rendering

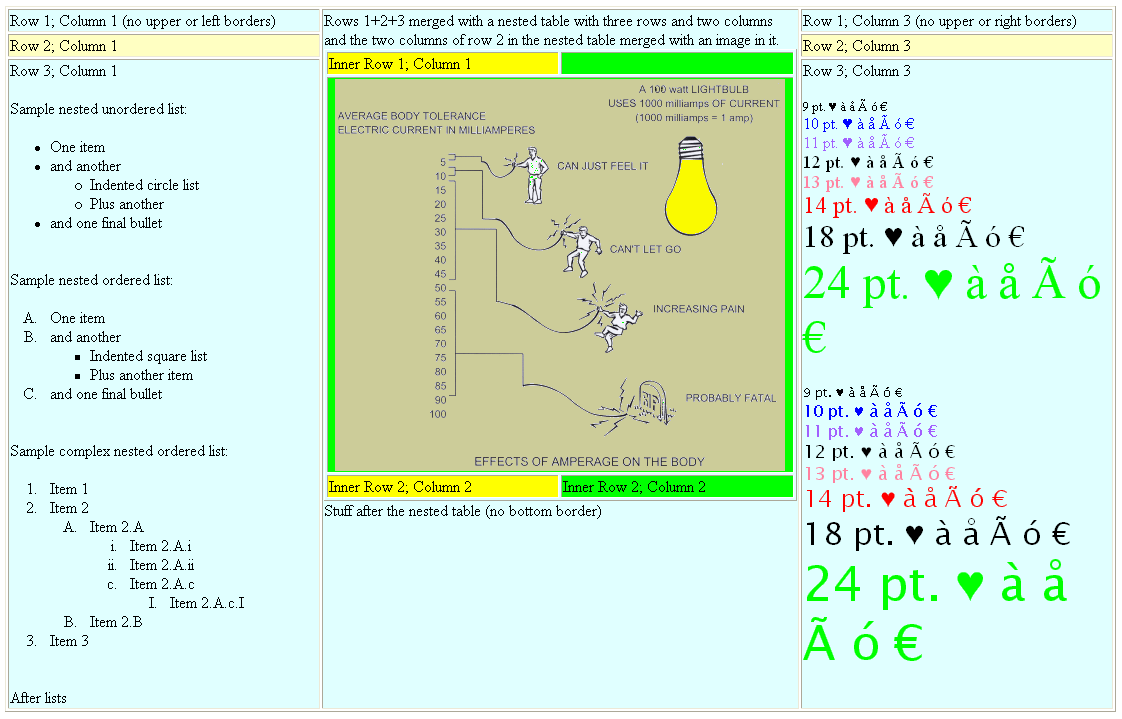

Rendered with IBM Lotus Domino 6.5.3 (50% size)
Domino rendering

Several rendering issues are probably pretty apparent, but let's focus on a few specifics that may or may not be obvious at first glance.  Let's look at a few issues and some detailed pictures:

1) Borders.  Midas gives you the power to render the specific table cell borders using CSS, so you can use some borders on and some off to get the effect you like.

Notes version (annotated with details to watch for)
Notes client rendering

Rendered with Midas
Midas rendering

Rendered with Domino
Domino rendering

2) Font sizes.  Midas can generate CSS point sizes, while Domino simply uses the HTML font sizes.  See how the 12pt and 13pt sizes are the same in Domino, but different in Midas.  Same with the 10pt and 11pt.  Also, see how the 24pt size is very similar in Notes and with Midas rendering, but is way bigger with Domino.

Notes version (look at total size, 10pt vs 11pt, 13pt vs 13pt and 24pt between the renderings)
Notes client rendering

Rendered with Midas
Midas rendering

Rendered with Domino
Domino rendering

3) Paragraph indentation.  Midas can generate CSS margins, while Domino uses a very crude margin system with list tags.  In the nested lists, even at the first level, see how much more closely the Notes client and Midas indentations match than the Domino indentations.  This can wreck havoc with a carefully designed form or document.

Notes version (look at spacing between first lines, indentation of first items, then of nested items)
Notes client rendering

Rendered with Midas
Midas rendering

Rendered with Domino
Domino rendering

4) Table rendering.  See how much closer to the Notes version the nested table (with the image in it) is with Midas than with Domino.  Tables are very hard to get right with Domino, and developers often wind up hard coding them in HTML.  Unfortunately, a normal user creating Notes content doesn't really have that choice.

5) Size and spacing.  Due partly to the font size issues and partly to other spacing issues with the tables, the full height of the Notes client version is about 507 pixels, the full height of the Midas rendered version is about 562 pixels, but the full height of the Domino generated version 719 pixels.  That is a full 42% larger than the Notes client image, and will likely go right off the screen.  (Note: width is harder to measure in this case because it shifts to accommodate the width of the screen)

Well, there are lots more issues I could address, but I hope this gives some sense of what Midas can do.

Copyright © 2006 Genii Software Ltd.

Fri 6 Jan 2006, 09:10 AM
A few people have asked about the technology behind the Lotusphere 2006 Sessions db (1540 downloads so far), deciphering lines such as:

Call rtchunk.AppendLayer("auto", "auto", "420px", "710px", 0, |LayerHTMLID='Layer' BackgroundImage='schedswan.gif' BackgroundColor='White' Text=' '|, "LeftMarginPercent=0 FirstLineLeftMarginPercent=0 RightMarginPercent=100" )

and explaining the use of CoexEdit, XML, Genii GrabIt LSX and more.  Would that be of interest?  Should I make it on-line or at Lotusphere?  Would it be best as Death by PowerPoint or using Camtasia?  Any thoughts?
